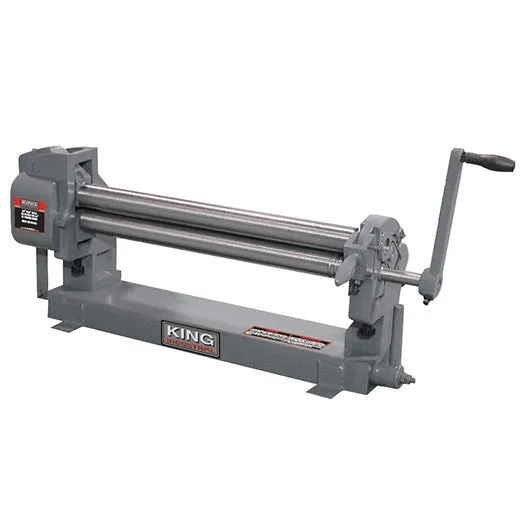

• Heavy cast-iron construction with front mounted handle for easy placement and release of workpiece
• Precision-turned tool steel rolls with wire grooves are ground and polished to offer accuracy and stability
• Hardened steel gearing
• Large roll adjusting screws facilitate lifting the upper roll for easy removal of material

Maximum Length: 24"

Capacity (Mild Steel): 22 Gauge

Diameter Of Rolls: 2"

Minimum Forming Radius: 3/4"

Wire Groove Diameters: 5/32", 15/64",5/16"

Gearing Ratio: 1:1

Assembled Dimensions (Lxwxh): 39" x 11" x 15"

Weight: 88Lbs
